BRONZE BALL VALVE (PLBNBV25)
- Light, compact and easy to install and operate.
- Quarter Turn rotary motion ball to stop and start the flow.
- Fast action shut-off, Quarter turn to open or close.
- Perfect tight shut-off and Improved leak protection.
- More resistant to damage during installation.
- Effcient stop valves with fluid flow in either direction.
- The straight through design offers less resistance to flow and reduces pressure drop to a minimum.
- Robust construction for long life and high quality bronze body
- Full bore design to facilitate optimal flow rates with minimum turbulence.
- Lead content of the Valve PB<2% ensure suitability of the material for potable water applications.
BRONZE GATE VALVE (PLBNGV20)
- Non-Rising is usefull when shut-off is required and when space is concern.
- Solid Wedge Disc, integral seat and bi-directional.
- Female threaded ends allow for ease installation.
- Screw-in bonnet service where frequent maintenance is required.
- Lead content of the Valve P<2% ensure suitability of the material for potable water applications.46
GATE VALVE RISING STEM (PLBNGVRS20)
- Rising stem id useful when shutoff is required and extended neck for perfect insulation.
- Solid Wedge Disc, integral seat and bi-directional.
- The female threaded ends allow for ease of installation.
- Screw-in bonnet service where infrequent maintenance is required.
BRONZE PRESSURE REDUCING VALVES (PLBNPRV25)
- PRVS enable control of pressure from boosted cold water supplies to match site requirements.
- Light, compact in constructions & short installed length.
- No influence on outlet pressure by fluctuating inlet pressure.
- Screw with knob for setting outlet pressure.
- The adjustment spring is not in contact with the medium.
- Greater flow performance with lower fall off pressure for consistent operation.
- Excellent controllability.
- Lead content of the Valve PBS2% ensure suitability of the material for potable water applications.
BRONZE Y-STRAINER (PLBNST20)
- Perforated stainless steel screen & Robust design.
- The female threaded ends allow for ease of installation.
- Low flow resistance and 50% Freeflow area.
- Streamlined flow contours minimize pressure drop.
- Compact design with short face to face.
- Asbestos-Free non-stick gasket.
- Comprehensive flow characteristics.
- Reduce the maintenance cost as well as minimising down time by protecting the circuit from damaged by any foreign metals or particles.
- Lead content of the Valve PB≤2% ensure suitability of the material for potable water applications.
BRONZE SWING CHECK VALVE (PLBNSCV20)
- Check valve permits flowing one direction and restrict reverse flow.
- Robust and high quality bronze body.
- Metal to metal seat for enhance sealing.
- Automatic in action, depending upon pressure & velocity of flow with the line to perform the functions of open and close.
- Screw-in bonnet service for easy regrinding disc.
- Suitable for mounting in horizontal and verical pipe (follow the Arrow Upwards)
- Lead content of the Valve PB≤2% ensure suitability of the material for potable water applications.

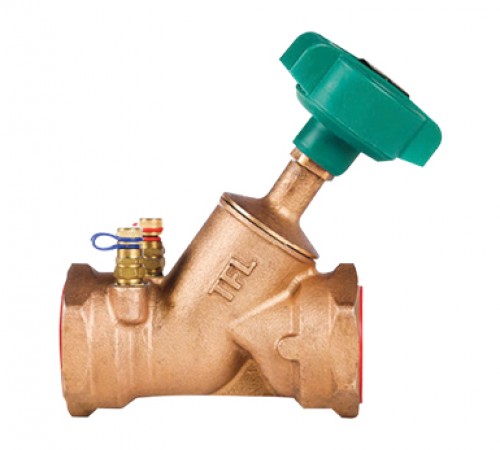

BRONZE FIXED ORIFICE DOUBLE REGULATING VALVE (PLBNFODRV25)
- Provide precise and accurate flow measurements.
- Integral square edged orifice plate and test points(3mm) fitted feature allows valve opening to be set within Allen key.
- Build in measuring nipples(test points) for flow measurement based on kv methodology.
- The double regulating wall with its integral fixed orifice.
- Design offers an accuracy of ±5% on all settings for precise flow regulation and the measurement.
- The female threaded ends allows for ease of installation.
- Screw in Bonnet for service where in frequent maintenance is required.
- Quickly and easily Installed using a press-fit tool.
- Provide flow control at all settings.
- Lead content of the Valve PB≤2% ensure suitability of the material for potable water applications.

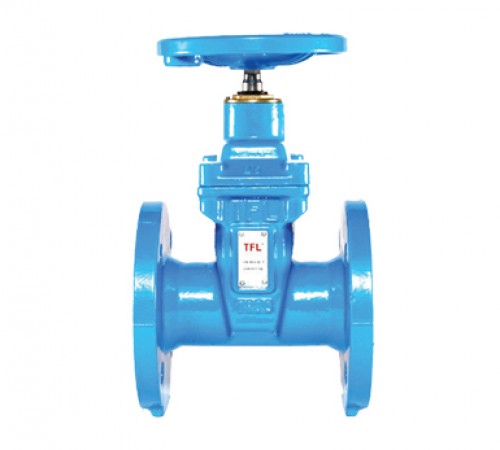

DUCTILE IRON RESILIENT SEATED GATE VALVE (PLDIGV16)
- The Gate Valves are with hand wheel or square cap.
- Full and straight bore in order to avoid turbulence, loss of head and VENTURI Effect.
- Flanges undrilled on request.
- Can be mounted in non-vertical positions.
- Non-rising stem is useful when shutoff is required and a space saving is necessary.
- Solid wedge and bi-directional.
- Bodies are with Epoxy coating, providing excellent corrosion and wear resistance to the valve's surface. Epoxy coating offers Chemical Resistance Weather ability -Abrasion Resistance Impact Resistance.
