BRONZE SWING CHECK VALVE (PLBNSCV20)

  • Check valve permits flowing one direction and restrict reverse flow.
  • Robust and high quality bronze body.
  • Metal to metal seat for enhance sealing.
  • Automatic in action, depending upon pressure & velocity of flow with the line to perform the functions of open and close.
  • Screw-in bonnet service for easy regrinding disc.
  • Suitable for mounting in horizontal and verical pipe (follow the Arrow Upwards)
  • Lead content of the Valve PB≤2% ensure suitability of the material for potable water applications.
Category :

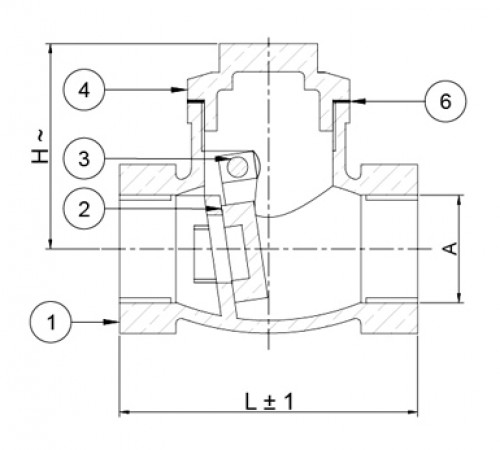

Part No Part Name Material
1 BODY PHOSPHOR BRONZE (BS:1400:PB2)
2 DISC PHOSPHOR BRONZE (BS:1400:PB2)
3 PIN BRASS: DZR BRASS 12164 CW 602 N
4 COVER BRONZE: BS EN 1984 CC 491K
5 HEX BOLT BRASS: DZR BRASS 12164 CW 602 N
6 GASKET PTFE

PRESSURE / TEMPERATURE RATING

Pressure Rating 20 bar
Temperature -10 to 100 °C

TEST PRESSURES

Shell 30 bar
Seat 22 bar

SPECIFICATION

  • Bronze body,Swing pattern.
  • Metal to metal seat, Threaded cap to BS EN 10226-2( ISO 7-1)
  • End connection Threaded cap.
  • Design standard BS 5154:1991
  • Testing standard: BS EN 12266-2.

DIMENSIONS & WEIGHTS

Size A L H Weight (kg)
15 MM 1/2” BSP 82 54 0.34
20 MM 3/4” BSP 85 63 0.40
25 MM 1” BSP 101 63 0.58
32 MM 1-1/4” BSP 115 70 0.84
40 MM 1-1/2” BSP 126 80 1.05
50 MM 2" BSP 145 90 1.50
