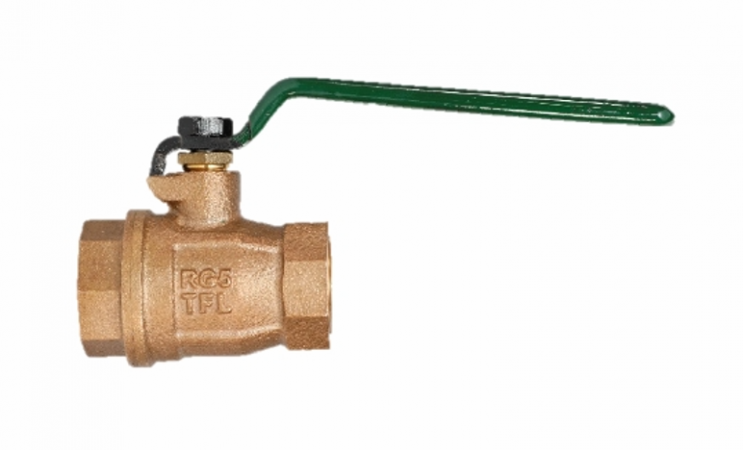

BRONZE BALL VALVE (PLBNBV25)

  • Light, compact and easy to install and operate.
  • Quarter Turn rotary motion ball to stop and start the flow.
  • Fast action shut-off, Quarter turn to open or close.
  • Perfect tight shut-off and Improved leak protection.
  • More resistant to damage during installation.
  • Effcient stop valves with fluid flow in either direction.
  • The straight through design offers less resistance to flow and reduces pressure drop to a minimum.
  • Robust construction for long life and high quality bronze body
  • Full bore design to facilitate optimal flow rates with minimum turbulence.
  • Lead content of the Valve PB<2% ensure suitability of the material for potable water applications.
Category :

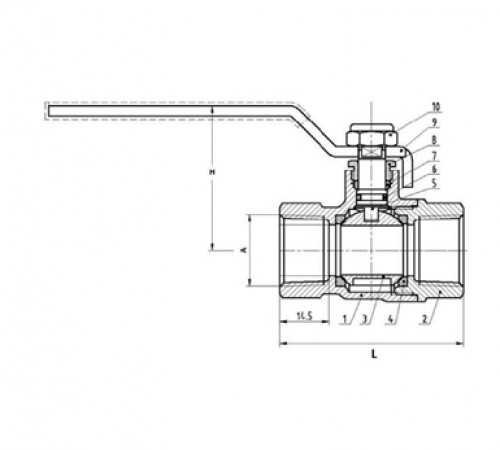

Part No Part Name Material
1 BODY PHOSPHOR BRONZE (BS:1400:PB2)
2 BONNET PHOSPHOR BRONZE (BS:1400:PB2)
3 BALL STAINLESS STEEL (SS 304)
4 SEAT PTFE
5 STEM BRASS (CW617N)
6 O-RING NBR
7 PACKING PTFE
8 PACKING NUT HPb57-3
9 HANDLE Q235A
10 HEX NUT S.S304

PRESSURE / TEMPERATURE RATING

Pressure Rating 25 bar
Temperature

-10 to 14 °C

TEST PRESSURES

Shell 37.5 bar
Seat 27.5 bar

SPECIFICATION

  • Ball made of Stainless steel, PTFE seats and stem seal.
  • Lever made of mild steel with plastic coating.
  • Lever operated.
  • Design: BS EN 12288.
  • End connection theraded to BS EN 10226-2 (ISO 7-1).
  • Testing standard: BS EN 12266-2.

DIMENSIONS & WEIGHTS

Size A L H Weight (kg)
15 MM 1/2” BSP 54 42.5 0.20
20 MM 3/4” BSP 62 42.5 0.35
25 MM 1” BSP 74 70 0.64
32 MM 1-1/4” BSP 85 82 1.13
40 MM 1-1/2” BSP 99 92 1.71
50 MM 2" BSP 125 108 2.47

Related Products

Product Images

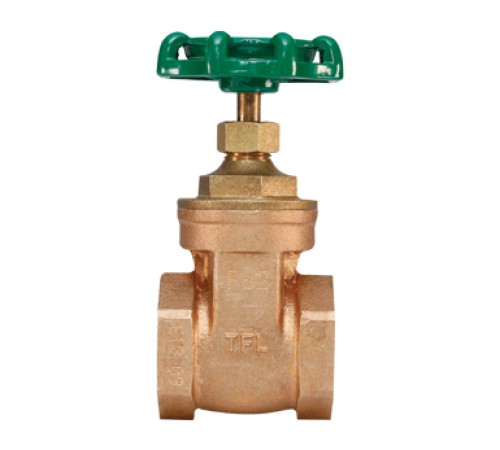

BRONZE GATE VALVE (PLBNGV20)
Product Images

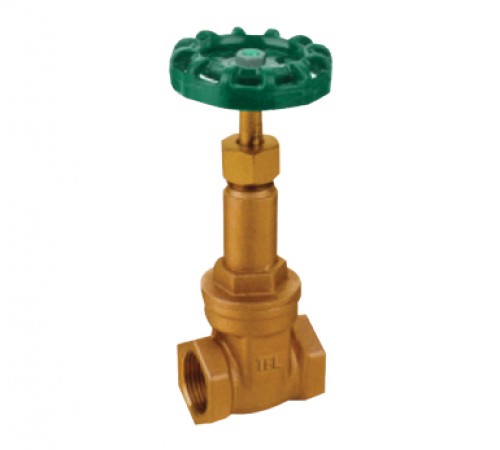

GATE VALVE RISING STEM (PLBNGVRS20)
Product Images

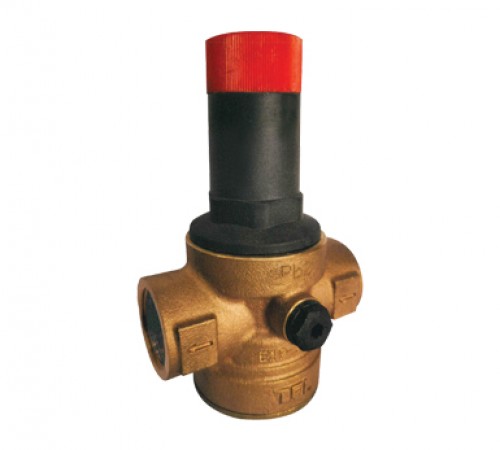

BRONZE PRESSURE REDUCING VALVES (PLBNPRV25)
Product Images

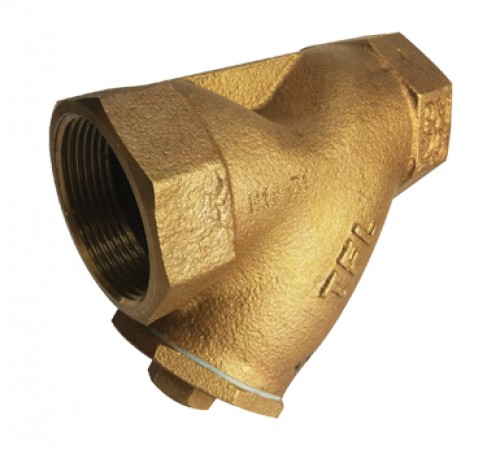

BRONZE Y-STRAINER (PLBNST20)
Product Images

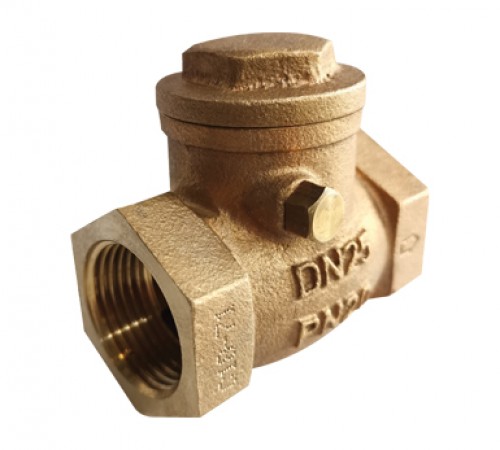

BRONZE SWING CHECK VALVE (PLBNSCV20)
