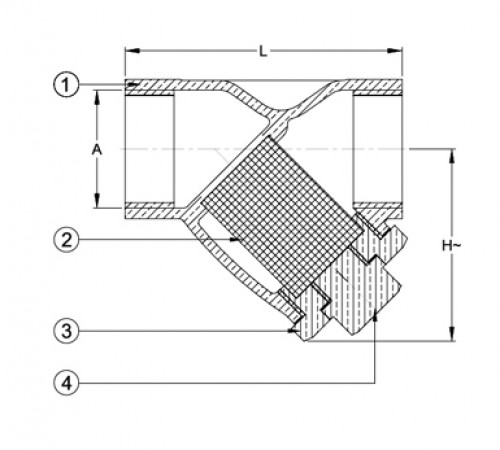

| Part No | Part Name | Material |
|---|---|---|
| 1 | BODY | PHOSPHOR BRONZE (BS:1400:PB2) |
| 2 | SCREEN | STAINLESS STEEL (SS 304) |
| 3 | BONNET | BRONZE: BS EN 1984 CC 491K |
| 4 | RETAINING NUT | BRONZE: BS EN 1984 CC 491K |
PRESSURE / TEMPERATURE RATING
| Pressure Rating | 20 bar |
| Temperature | -10 to 120 °C |
TEST PRESSURES
| Shell | 30 bar |
SPECIFICATION
- Strainers fitted with stainless steel perforated stainer element.
- Mesh size: 0.75mm.
- Screens fitted into strainers conform to the high standard of materials
- End connection threaded to BS EN 10266-2(ISO7-1)
- Testing standard: BS EN 12266-2.
DIMENSIONS & WEIGHTS
| Size | A | L | H | Weight (kg) |
| 15 MM | 1/2” BSP | 60 | 41 | 0.22 |
| 20 MM | 3/4” BSP | 70 | 47 | 0.31 |
| 25 MM | 1” BSP | 78 | 54 | 0.46 |
| 32 MM | 1-1/4” BSP | 92 | 67 | 0.68 |
| 40 MM | 1-1/2” BSP | 105 | 75 | 0.96 |
| 50 MM | 2" BSP | 125 | 92 | 1.56 |
