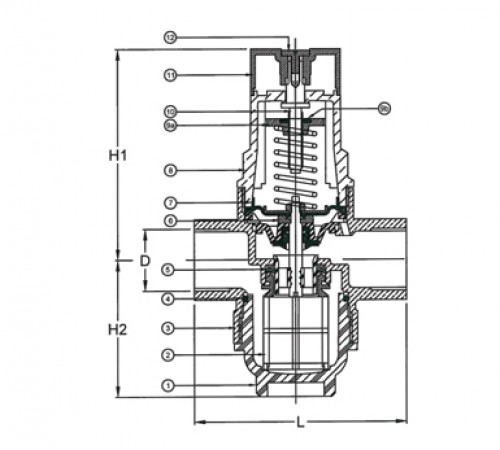

| Part No | Part Name | Material |
|---|---|---|
| 1 | CAP | PHOSPHOR BRONZE (BS:1400:PB2) |
| 2 | STRAINER | NYLON-6 |
| 3 | BODY | PHOSPHOR BRONZE (BS:1400:PB2) |
| 4 | O RING | RUBBER (NBR) |
| 5 | U RING | RUBBER (NBR) |
| 6 | WASHER | BRASS (CZ 114 OF BS: 2872/2874) |
| 7 | GASKET RING | NYLON-6 |
| 8 | BONNET | NYLON-6 |
| 9A | SPRING DISC | NYLON-6 |
| 9B | SPRING DISC UNINT | BRASS (CZ 114 OF BS: 2872/2874) |
| 10 | SPINDLE | BRASS (CZ 114 OF BS: 2872/2874) |
| 11 | ADJUSTABLE RING | NYLON-6 |
| 12 | SCREW | STAINLESS STEEL (AISI 304) |
| 13 | O RING | RUBBER (NBR) |
| 14 | DISC NUT | NYLON-6 |
| 15 | SEAT RING | RUBBER (NBR) |
| 16 | DIAPHRAGM | RUBBER (NBR) |
| 17 | LOWER SPRING DISC | MILD STEEL |
| 18 | GUIDE | NYLON-6 |
| 19 | SPRING | SPRING STEEL |
| 20A | DISC | NYLON-6 |
| 20B | S.S SPINDLE | STAINLESS STEEL (AISI 304) |
| 21 | GAUGE PLUGE NUT | NYLON-6 |
| 22 | GASKET | TEFLON(PTFE) |
| 23 | BONNET GASKET | TEFLON(PTFE) |
| 24 | HEX NUT | BRASS (CZ 114 OF BS: 2872/2874) |
PRESSURE / TEMPERATURE RATING
| Pressure Rating | 25 bar |
| Temperature | -10 to +115 °C |
TEST PRESSURES
| Shell | 37.5 bar |
SPECIFICATION
- Integral fine mesh stainless filter.
- Recommend that isolation valves are fitted upstream and downstream of the valve to enable isolation for cleaning filter.
- Internal threaded connection
IMENSIONS & WEIGHTS
| Size | A | L | H | H2 |
| 15 MM | 1/2” BSP | 82 | 8935 | 58 |
| 20 MM | 3/4" bsp | 90 | 89.5 | 58 |
| 25 MM | 1" BSP | 98 | 111 | 64.5 |
| 32 MM | 1-1/4" BSP | 130.5 | 174 | 126.5 |
| 40 MM | 1-1/2" BSP | 130.5 | 174 | 126.5 |
| 50 MM | 2" BSP | 140.5 | 174 | 126.5 |
