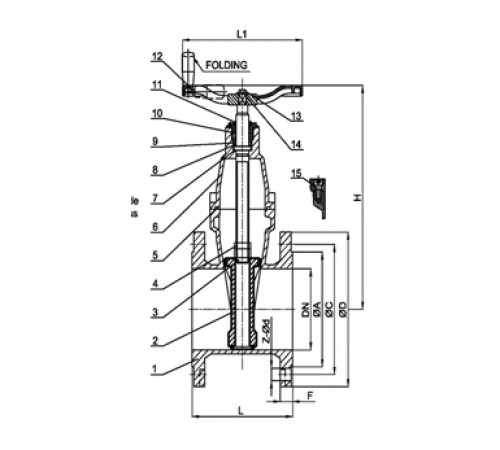

| Part No | Part Name | Material |
|---|---|---|
| 1 | BODY | DUCTILE IRON (EN JS 1050) |
| 2 | WEDGE | DUCTILE IRON + EPDM) |
| 3 | STEM | STEEL (BS 970 420S37) |
| 4 | STEM NUT | RED BRASS (C83600) |
| 5 | SEALING RING | EPDM |
| 6 | BONNET | DUCTILE IRON (EN JS 1050) |
| 7 | GASKET | RED BRASS (C83600) |
| 8 | GLAND | RED BRASS (C83600) |
| 9 | O-RING | EPDM |
| 10 | O-RING | EPDM |
| 11 | DUST RING | EPDM |
| 12 | HAND WHEEL | DUCTILE IRON (EN JS 1050) |
| 13 | BOLT | STAINLESS STEEL (8$ 970 304 $15) |
| 14 | WASHER | STAINLESS STEEL (BS 970 304 $15) |

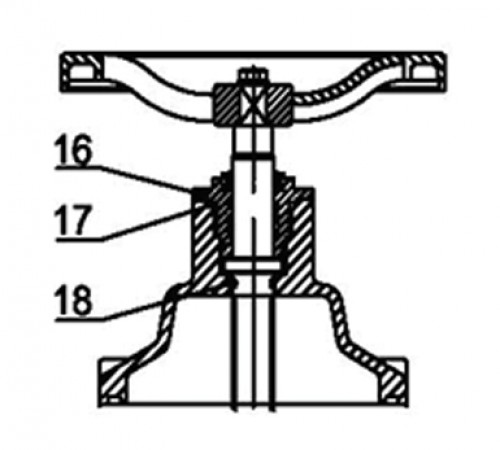

| 15 | SCREW | STAINLESS STEEL (BS 970 304 $15) |
| 16 | SCREW | STAINLESS STEEL (BS 970 304 $15) |
| 17 | O-RING | EPDM |
| 18 | O-RING | EPDM |
PRESSURE / TEMPERATURE RATING
| Pressure Rating | 16 bar |
| Temperature | -10 to +85 °C |
TEST PRESSURES
| Shell | 24 bar |
| Seat | 17.6 bar |
SPECIFICATION
- Ductile Iron with integral flanges.
- Inside screw pattern with non-rising stem. Hand wheel operated.
- End connection: EN1092-2, PN16..
- Temperature operating range: -10 to 85°C..
- Pressure Rating: PN16.
- Design: BS 5163.
- Testing: EN 12266-1.
- Face to Face: BS EN 558-1 SERIES-3.
DIMENSIONS & WEIGHTS
| Size | A | C | D | L | - | HI | Z-Ød | Weight (kg) |
| 65 MM | 118 | 145 | 185 | 190 | 160 | 230 | 4-Ø19 | 13 |
| 80 MM | 132 | 160 | 200 | 203 | 200 | 276 | 8-Ø19 | 15 |
| 100 MM | 156 | 180 | 220 | 229 | 200 | 311 | 8-Ø19 | 19 |
| 125 MM | 184 | 210 | 250 | 254 | 250 | 364 | 8-Ø19 | 25 |
| 150 MM | 211 | 240 | 285 | 267 | 250 | 413 | 8-Ø23 | 33 |
| 200 MM | 266 | 295 | 340 | 292 | 280 | 503 | 12-Ø23 | 51 |
