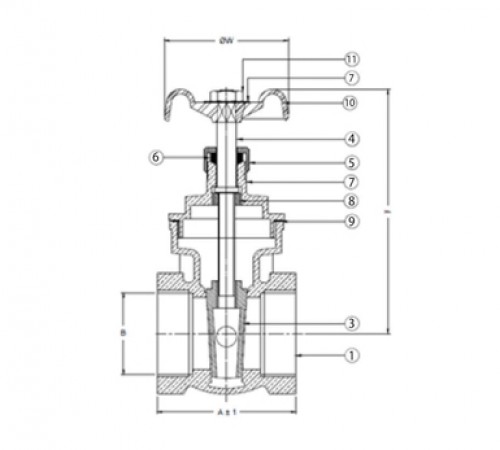

| Part No | Part Name | Material |
|---|---|---|
| 1 | BODY | PHOSPHOR BRONZE (BS:1400:PB2) |
| 2 | BONNET | PHOSPHOR BRONZE (BS:1400:PB2) |
| 3 | EWDGE | PHOSPHOR BRONZE (BS:1400:PB2) |
| 4 | STEM | PHOSPHOR BRONZE (BS:1400:PB2) |
| 5 | GLAND NUT | BRASS (CZ 144 OF BS:2874) |
| 6 | GLAND PACKING | TEFLON (PTFE) |
| 7 | NAME PLATE | ALUMINIUM |
| 8 | CHECK NUT | BRASS (CZ 144 OF BS:2874) |
| 9 | PACKING | TEFLON (PTFE) |
| 10 | HAND WHEEL | ALUMINIUM |
| 11 | NUT | MILD STEEL |
PRESSURE / TEMPERATURE RATING
| Pressure Rating | 20 bar |
| Temperature | -10 to 120 °C |
TEST PRESSURES
| Shell | 30 bar |
| Seat | 22 bar |
SPECIFICATION
- Solid wedge disc, Non-rising stem, screwed in bonnet.
- Single piece wedge and Hand wheel operated
- End connection Taper threaded to BS EN 10226 (ISO 7-1)
- Rating: PN20
- Design: BS EN 12288
- Testing: EN 12266 - 1
- Testing standard: BS EN 12266-2.
DIMENSIONS & WEIGHTS
| Size | A | L | H | Weight (kg) |
| 15 MM | 1/2” BSP | 46 | 82 | 0.27 |
| 20 MM | 3/4” BSP | 50 | 85 | 0.37 |
| 25 MM | 1” BSP | 55 | 101 | 0.49 |
| 32 MM | 1-1/4” BSP | 61 | 115 | 0.89 |
| 40 MM | 1-1/2” BSP | 63 | 126 | 0.94 |
| 50 MM | 2" BSP | 71 | 145 | 1.38 |
