| Part No | Part Name | Material |
|---|---|---|
| 1 | BODY | PHOSPHOR BRONZE (BS:1400:PB2) |
| 2 | BONNET | PHOSPHOR BRONZE (BS:1400:PB2) |
| 3 | EWDGE | PHOSPHOR BRONZE (BS:1400:PB2) |
| 4 | STEM | PHOSPHOR BRONZE (BS:1400:PB2) |
| 5 | GLAND NUT | BRASS (CZ 144 OF BS:2874) |
| 6 | GLAND PACKING | TEFLON (PTFE) |
| 7 | NAME PLATE | ALUMINIUM |
| 8 | CHECK NUT | BRASS (CZ 144 OF BS:2874) |
| 9 | PACKING | TEFLON (PTFE) |
| 10 | HAND WHEEL | ALUMINIUM |
| 11 | NUT | MILD STEEL |
PRESSURE / TEMPERATURE RATING
| Pressure Rating | 20 bar |
| Temperature | -10 to 120 °C |
TEST PRESSURES
| Shell | 30 bar |
| Seat | 22 bar |
SPECIFICATION
- Solid wedge disc, Non-rising stem, screwed in bonnet.
- Single piece wedge.
- Hand wheel operated
- End connection Taper threaded: ANSI B1.20.1
- Rating: CLASS 150
- Design standard: MSS SP-80
- Testing standard: API 598
DIMENSIONS & WEIGHTS

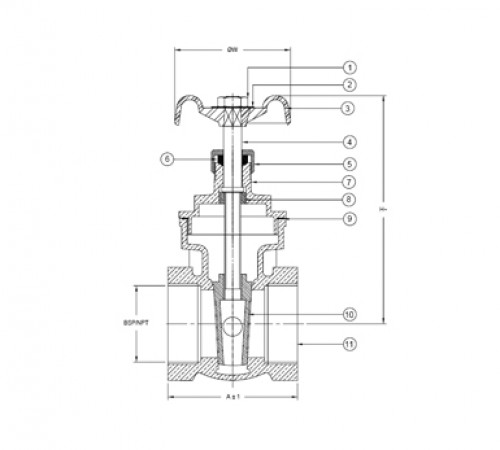

| Size | A | L | H~ | ØW | Weight (kg) |
| 15 MM | 1/2” BSP | 60 | 140 | 58 | 0.35 |
| 20 MM | 3/4” BSP | 60 | 140 | 58 | 0.42 |
| 25 MM | 1” BSP | 70 | 160 | 67 | 0.54 |
| 32 MM | 1-1/4” BSP | 80 | 190 | 73 | 0.95 |
| 40 MM | 1-1/2” BSP | 90 | 190 | 85 | 1 |
| 50 MM | 2" BSP | 100 | 230 | 110 | 1.50 |
