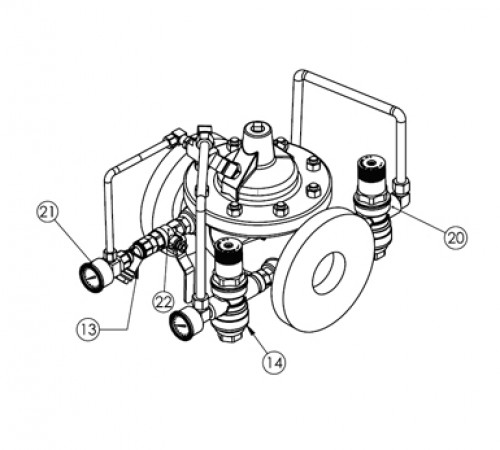

| Part No | Part Name | Material |
|---|---|---|
| 1 | BODY | S.G. IRON (ASTM A536 Gr 60-40-18) |
| 2 | SEAT RING | S.S.(AISI316) |
| 3 | BONNET | S.G. IRON (ASTM A536 Gr 60-40-18) |
| 4 | DISC HOLDER | S.G. IRON (ASTM A536 Gr 60-40-18) |
| 5 | DISC | S.S.(AISI316) |
| 6 | STEM | S.S.(AISI316) |
| 7 | DIAPHRAGM PLATE | S.G. IRON (ASTM A536 Gr 60-40-18) |
| 8 | DISK WASHER | S.S.(AISI316) |
| 9 | BONNET BEARING | S.S.(AISI316) |
| 10 | DIAPHRAGM | NBR |
| 11 | LOWER SPRING DISC | S.S.(AISI316) |
| 12 | STEM WASHER | S.S.(AISI316) |
| 13 | STRINER | PHOSPHOR BRONZE (BS 1400 LG2) |
| 14 | PRV | PHOSPHOR BRONZE (BS 1400 LG2) |
| 15 | STEM NUT | S.S.(AISI316) |
| 16 | PLUG | S.S.(AISI316) |
| 17 | STUDS | M.S. |
| 18 | NUTS | M.S. |
| 19 | SPRING | SPRING STEEL |
| 20 | LOW FLOW BYPASS PRV | BRONZE (85 1400 LG2) |
| 21 | PRESSURE GAUGE | – – – – |
| 22 | BALL VALVE | FORGED BRASS |
PRESSURE / TEMPERATURE RATING
| Pressure Rating | 25 bar |
| Temperature | 0 to 80 °C |
PRESSURE REGULATING RANGE
| RANGE | .7 Bar– 16 Bar |
| Factory Setting | 3.5 Bar |
TEST PRESSURE
| Shell | 37.5 bar |
| Seat | 27.5 bar |

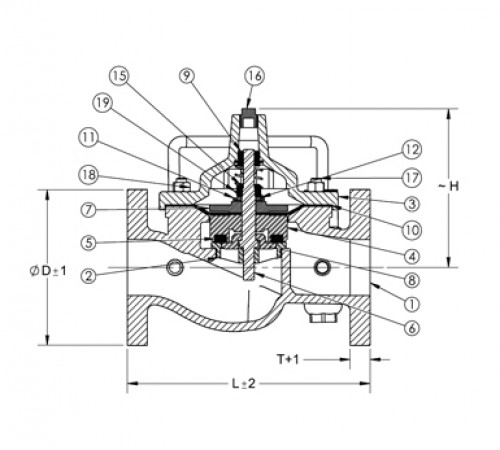

DIMENSIONS ARE IN MM
| SIZE | L | D | T | H |
| 32 MM | 210 | 140 | 19.0 | 146 |
| 40 MM | 216 | 150 | 19.0 | 146 |
| 50 MM | 230 | 165 | 19.0 | 158 |
| 65 MM | 280 | 180 | 19.0 | 183.5 |
| 80 MM | 310 | 200 | 19.0 | 183 |
| 100 MM | 350 | 235 | 19.0 | 228 |
| 150 MM | 480 | 300 | 20 | 285 |
| 200 MM | 600 | 360 | 22 | 396 |
