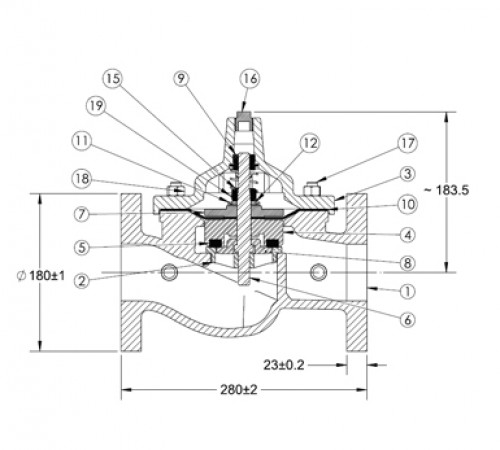

| Part No | Part Name | Material |
|---|---|---|
| 1 | BODY | S.G. IRON (ASTM A536) |
| 2 | SEAT RING | S.S.(AISI316) |
| 3 | BONNET | S.G. IRON (ASTM A536) |
| 4 | DISC HOLDER | S.G. IRON (ASTM A536) |
| 5 | DISC | S.S.(AISI316) |
| 6 | STEM | S.S.(AISI316) |
| 7 | DIAPHRAGM PLATE | S.G. IRON (ASTM A536) |
| 8 | DISK WASHER | S.S.(AISI316) |
| 9 | BONNET BEARING | S.S.(AISI316) |
| 10 | DIAPHRAGM | NBR |
| 11 | LOWER SPRING DISC | S.S.(AISI316) |
| 12 | STEM WASHER | S.S.(AISI316) |

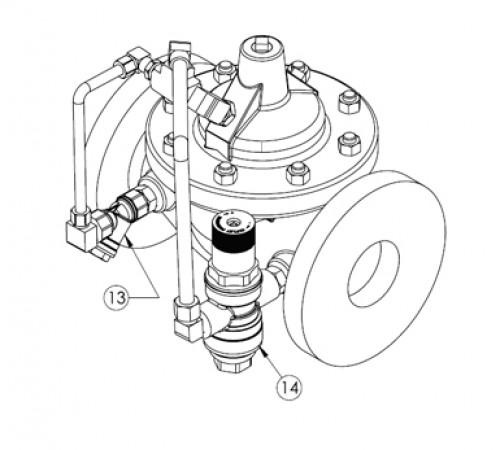

| 13 | STRINER | BRONZE (BS 1400 LG2) |
| 14 | PRV | BRONZE (BS 1400 LG2) |
| 15 | STEM NUT | S.S.(AISI316) |
| 16 | PLUG | S.S.(AISI316) |
| 17 | STUDS | M.S. |
| 18 | NUTS | M.S. |
| 19 | SPRING | SPRING STEEL |
APPLICATION
- Water treatment plant
- Water source project
- Building Services
- Municipal facilities
- Power & Utility
INSTALLATION INSTRUCTIONS
- The valve's rated parameters should match the equipment's.Make sure that the valve's rated flow satisfies the actual demand.
- The installer must be trained or experienced so as to operate the installation correctly.
- Water supply pipe network should be washed before pressure reducing valve installation, eliminating sand, graval and other debris in the pipe;
- The flow direction from Inlet to outlet should be paid attention to in installation, and maintenance space around the valve is convenient to assemble;
- For the size below DN150, the main valve can be installed horizontally or vertically, but horizontal installation is better. the size aboveDN150 only can be installed horizontaly.
- After debugging, the pilot valve and the needle type flow valve must be locked with locknut;
- Valve should be checked regularly, ensuring the debris in filter being cleaned.
PRESSURE / TEMPERATURE RATING
| Pressure Rating | 25 bar |
| Temperature | -10 to 80 °C |
PRESSURE REGULATING RANGE
| RANGE | .7 Bar–9 Bar |
| Factory Setting | 3.5 Bar |
TEST PRESSURE
| Shell | 37.5 bar |
| Seat | 27.5 bar |
