DZR BRASS BIB TAP (PLBRBP10)
Product Image
Product Image
Product Image
Product Thumnail Product Thumnail Product Thumnail

DZR BRASS BIB TAP (PLBRBP10)

  • Bill top with hose union.
  • Screw Down T Handle.
  • Hose tail outlet.
  • Bronze/ DUR brass body.
  • Fits directly into a wall socket.
  • Locksheld type with spare key protect from unauthorisd operation.
  • Bib top with house union manufactured from DZR brass/bronze are suitable for use as an external supply, drain off tap, or standpipe.
  • Available in Screw down T handle type. Designed to fix directly into a wall fitting, via the 1/2 or 3/4 or 1" mole inlet, and terminales in a hose tail attached to the top body.
Category :
Part No Part Name Material
1 BODY/CAP/PLUG/ADAPTOR DZR BRASS/BRONZE
2 T HANDLE BRASS
3 DISK EPDM

PRESSURE / TEMPERATURE RATING

working Pressure 20 bar max.
working Temperature 95 °C max.

TEST PRESSURES

Shell 24 bar
Seat 17.6 bar

SPECIFICATION

  • Inlet connection : 1/4" or 3/4" or 1" BSP male
  • Outlet connection: Hose tail

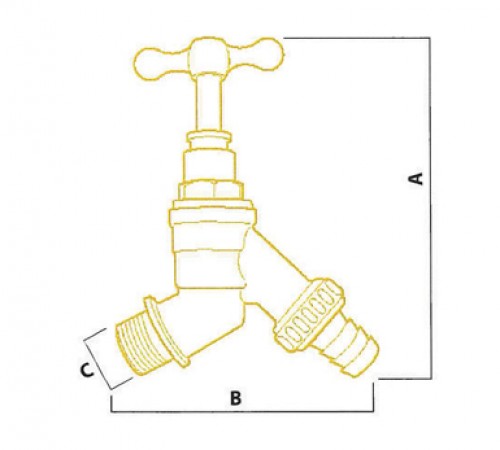

DIMENSIONS

TYPE A B C
EBM-42-A 105 72 1/2" BSP
EBH-42-B 140 110 3/4" BSP
EBH-42-C 140 110 1" BSP
