INSTALLATION
Always install the valve with the arrow on the body in the same directions of flow. In order to avoid turbulence, which will affect the measuring accuracy, it is recommended to have a straight length of pipe up and down stream from the valve as shown (D-diameter of pipe)
PRESSURE / TEMPERATURE RATING
| Pressure Rating |
16 bar |
| Temperature |
-10 to 120 °C |
TEST PRESSURES
| Shell |
24 bar |
| Seat |
17.6 bar |
SPECIFICATION
- Hand operated with micro-meter style indicator.
- Globe type Y-pattern with characterised throttled disc with equal percentage.
- Conforms to BS 7350 for flow measurement and regulations
- Mounted on flow or return pipe.
- Design standard: BS7350.
- Testing standard: BS EN12266-2.

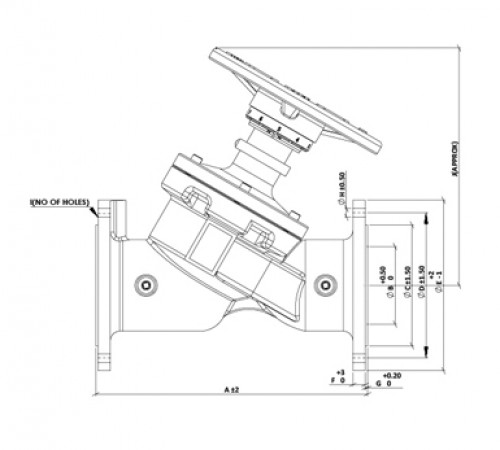

DIMENSIONS & WEIGHTS
| Size |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
Weight (kg) |
| 65 MM |
290 |
65 |
118 |
145 |
200 |
16.00 |
3.00 |
19 |
4 |
262 |
14.30 |
| 80 MM |
310 |
80 |
132 |
160 |
220 |
16 |
3 |
19 |
8 |
267 |
21.40 |
| 100 MM |
350 |
100 |
156 |
180 |
250 |
16 |
3 |
19 |
8 |
300 |
31.10 |
| 125 MM |
400 |
125 |
184 |
210 |
285 |
16 |
3 |
19 |
8 |
325 |
42 |
| 150 MM |
480 |
150 |
211 |
240 |
340 |
16 |
3 |
23 |
8 |
340 |
62 |
| 200 MM |
600 |
200 |
266 |
295 |
400 |
17 |
3 |
23 |
12 |
525 |
118 |
| 250 MM |
730 |
250 |
319 |
355 |
455 |
19 |
3 |
28 |
12 |
575 |
201 |
| 300 MM |
850 |
300 |
370 |
410 |
- |
20.5 |
4 |
28 |
12 |
645 |
256 |
Bigger sizes can be provided as per request
