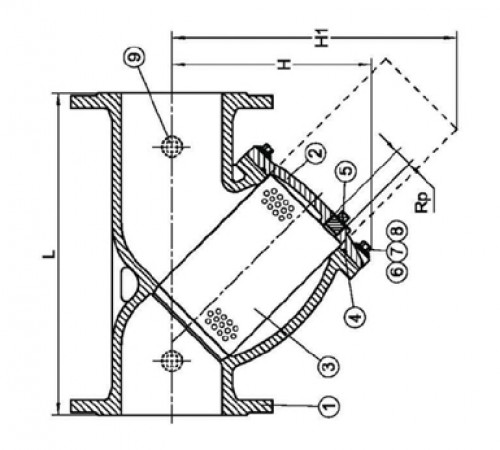

| Part No | Part Name | Material |
|---|---|---|
| 1 | BODY | DUCTILE IRON (BSEN1563 EN-GJS-1050) |
| 2 | COVER | DUCTILE IRON (BSEN1563 EN-GJS-1050) |
| 3 | SCREEN | STAINLESS STEEL (BS EN 10088 5CrNi18-10) |
| 4 | PACKING | EPDM |
| 5 | DRAIN FLUG | STAINLESS STEEL (BS EN 10088 "5CrNi18-10) |
| 6 | BOLT | CARBON STEEL GAVANISED (EN 10083-2C45) |
| 7 | SPRING WASHER | CARBON STEEL GAVANISED (EN 10132-4C675) |
| 8 | WASHER | CARBON STEEL GAVANISED (EN 10083-2C45) |
| 9 | TEST PLUG | STAINLESS STEEL (BS EN 10088.-5Cr Ni15-10) |
PRESSURE / TEMPERATURE RATING
| Pressure Rating | 25 bar |
| Temperature | -10 to 85 °C |
TEST PRESSURES
| Shell | 37.5 bar |
| Seat | 27.5 bar |
SPECIFICATION
- Strainers fitted with stainless steel perforated strainer.
- Coating/panits: Epoxy powder coated.
- End connection: BS EN 1092-2 PN25.
- Rating: PN26.
- Testing: EN 12266-1.
- Face to Face: BS EN 558-1.
DIMENSIONS & WEIGHTS
| Size | L | H | H1 | R1 (Drain Plug) | Mesh Dia | Weight (kg) |
| 65 MM | 29 | 137 | 205 | 3/8" | 1.5 | 14.5 |
| 80 MM | 310 | 152 | 238 | 3/8" | 1.5 | 17.5 |
| 100 MM | 350 | 205 | 318 | 3/8" | 1.5 | 22.5 |
| 125 MM | 400 | 244 | 358 | 3/8" | 1.5 | 24 |
| 150 MM | 480 | 269 | 380 | 3/8" | 1.5 | 54 |
| 200 MM | 600 | 341 | 508 | 1/2" | 2.5 | 97.5 |
