DUCTILE IRON CHECK VALVE - WAFER TYPE (PLDICVW16)
Product Image
Product Image
Product Thumnail Product Thumnail

DUCTILE IRON CHECK VALVE - WAFER TYPE (PLDICVW16)

  • Permit flows in one direction and close automaticaly if flow reverse size.
  • Low wieght and short laying length saves initial cost, requires less space, and is easier to install.
  • Independent springs provide quick-closing, non-slam shut off for reduced water hammer potential.
  •  Lightweight, spring-loaded discs have low cracking pressure for energy efficient operation.
  • 200 Micron Fusion Bonded Epoxy Powder Coated internal and external ensured barrier to corrosive chemicals, moisture and humid air.
  • Featuring dual lightweight discs, responsive independent spring and a durable resilient seat for reliable flow activated operation with tight sealing and reduced water hammer potential.
  • EPDM rubber seat to faciliate quiet/Silent operations and improve disc seating without any leakage.
Category :

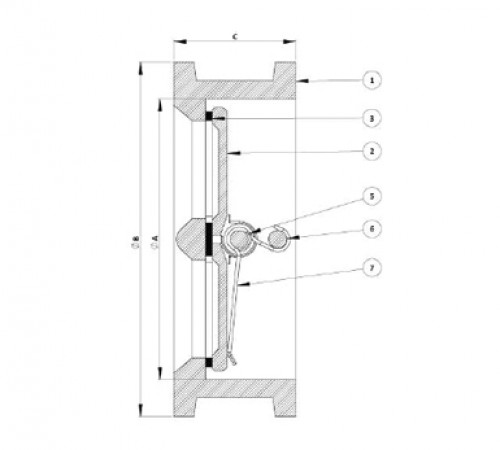

Part No Part Name Material
1 BODY DUCTILE IRON : BS EN1563 EN-JS 1050
2 PLATES/DISC STAINLESS STEEL: BS EN 10088-3 GR.1 4301
3 SEAT RUBBER EPDM
4 BODY/PLATE/SPRING BEARING NYLON/PTFE: BS 6564
5 HINGLE PIN STAINLESS STEEL: BS EN 10088-3 GR.1 4301
6 STOP PIN STAINLESS STEEL: BS EN 10088-3 GR.1 4301
7 TORISION SPRING STAINLESS STEEL: BS EN 10088-3 GR.1 4308
8 HINGE PIN RETAINERS STAINLESS STEEL: BS EN 10088-3 GR.1 4301
9 PACKING RUBBER EPOM
10 EYE BOLT STEEL

PRESSURE / TEMPERATURE RATING

Pressure Rating 16 bar
Temperature -10 to 120 °C

TEST PRESSURES

Shell 24 bar
Seat 17.6 bar

SPECIFICATION

  • Double door wafer pattern with spring assisted closure.
  • Elastomer seat vulcanized to the body casting to ensure extended seal life.
  • Suitable for mounting in horizontol and vertical pipelines.
  • Ideal for fitting between flanges to BS EN 1092-2.
  • Face to Face: BS EN558.
  • Testing standard: BS EN 12266-2.

DIMENSIONS & WEIGHTS

Size A B C Weight (kg)
65 MM 81 109 54 2.80
80 MM 99 130 57 3.20
100 MM 116 160 64 4.60
125 MM 143 194 70 7.40
150 MM 170 214 76 8.50
200 MM 219 270 95 16.10
250MM 273 328 108 25.50
300MM 324 378 143 39.50
305MM 360 447 184 72.50
400MM 406 511 191 94.50
450MM 457 546 203 120
500MM 508 603 213 150
600MM 610 714 222 210
