| Part No | Part Name | Material |
|---|---|---|
| 1 | BODY | DUCTILE IRON : BS EN 1563 EN-JS1030 |
| 2 | BONNET | DUCTILE IRON : BS EN 1563 EN-JS1030 |
| 3 | WEDGE | DUCTILE IRON : BS EN 1563 EN-JS1030 |
| 4 | WEDGE | DUCTILE IRON + EPDM |
| 5 | STEM | STAINLESS STEEL : BS EN 10088-1GR.1.4006 |
| 6 | BODY SEAT RING | CAST BRONZE: BS EN 1982 C C 491K |
| 7 | WEDGE SEAT RING | CAST BRONZE : BS EN 1982 C C 491K |
| 8 | GLAND FLANGE | DUCTILE IRON : BS EN 1563 EN-JS1030 |
| 9 | HAND WHEEL | DUCTILE IRON : BS EN 1563 EN-JS1030 |
| 10 | GLAND PACKING | RUBBER : EPDM |
| 11 | GASKET | RUBBER : EPDM |
| 12 | BOLT | CARBON STEEL : BS 4439 GR.8.8 |
| 13 | NUT | CARBON STEEL : BS 4439 GR.8.8 |
| 14 | WEDGE NUT | CAST BRONZE : BS EN 1982 C C 491K |
PRESSURE / TEMPERATURE RATING
| Pressure Rating | 16 bar |
| Temperature | -10 to 120 °C |
TEST PRESSURES
| Shell | 24 bar |
| Seat | 17.6 bar |
SPECIFICATION
- Ductile iron with integral ?anges
- Hand wheel operated.
- Face to face: DIN 3202 F4
- End connection: PN16
- Flanged : BS EN1092-1
- Design standard : DIN 3352 F4
- Testing standard : BS EN 12266-2
DIMENSIONS & WEIGHTS

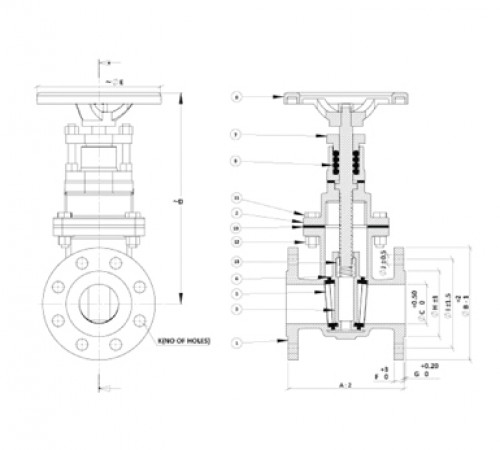

| Size | A | B | C | D | E | F | G | H | I | J | K | Weight(kg) |
| 65 MM | 190 | 185 | 65 | 380 | 225 | 16 | 3 | 118 | 145 | 19 | 4 | 13 |
| 80 MM | 203 | 200 | 80 | 425 | 225 | 16 | 3 | 132 | 160 | 19 | 8 | 15 |
| 100 MM | 229 | 220 | 100 | 470 | 320 | 16 | 3 | 156 | 180 | 19 | 8 | 19 |
| 125 MM | 254 | 250 | 125 | 485 | 320 | 16 | 3 | 184 | 210 | 19 | 8 | 25 |
| 150 MM | 267 | 285 | 150 | 595 | 320 | 16 | 3 | 211 | 240 | 23 | 8 | 33 |
| 200 MM | 282 | 340 | 200 | 725 | 360 | 17 | 3 | 266 | 295 | 23 | 12 | 51 |
| 250 MM | 330 | 405 | 250 | 835 | 400 | 19 | 3 | 319 | 355 | 28 | 12 | 78 |
| 300 MM | 356 | 460 | 300 | 910 | 400 | 20.5 | 4 | 370 | 410 | 28 | 12 | 112 |
| 350 MM | 381 | 520 | 350 | 1030 | 500 | 22.5 | 4 | 429 | 470 | 28 | 16 | 160 |
| 400 MM | 406 | 580 | 400 | 1110 | 640 | 24 | 4 | 480 | 525 | 31 | 16 | 210 |
