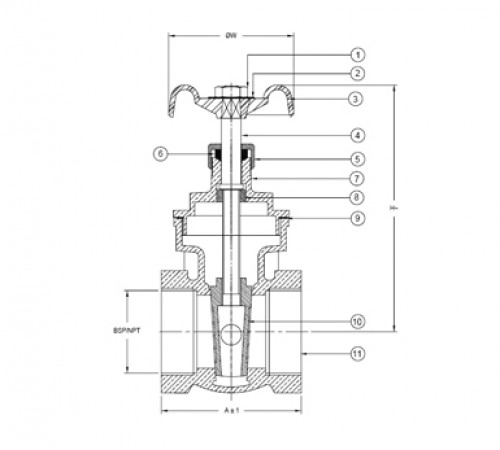

| Part No | Part Name | Material |
|---|---|---|
| 1 | BODY | BS EN 1984 CC 941 |
| 2 | WEDGE | BS EN 1984 CC 941 |
| 3 | SPINDLE | BS : 2874 CZ 114 |
| 4 | BONNET | BS EN 1984 CC 491 K |
| 5 | PACKING | TEFLON : PTFE |
| 6 | GLAND NUT | BS EN 1984 CC 491 K |
| 7 | HAND WHEEL | CAST IRON |
| 8 | WASHER | MILDSTEEL : MS |
| 9 | HEX NUT | MILDSTEEL : MS |
| 10 | GLAND | BS : 2874 CZ 114 |
PRESSURE / TEMPERATURE RATING
| Pressure Rating | 20 bar |
| Temperature | -10 to 120 °C |
TEST PRESSURES
| Shell | 30 bar |
| Seat | 22 bar |
SPECIFICATION
- Solid wedge disk, rising stem,screw-in bonnet.
- Single piece wedge.
- Hand wheel operated.
- End connection Threaded : ANSI B1.20.1
- Rating: CLASS 150
- Design standard : MSS SP-80
- Testing standard: API 598
DIMENSIONS & WEIGHTS
| Size | A | L | h~ | ØW | Weight (kg) |
| 15 MM | 1/2" BSp | 60 | 140 | 58 | 0.35 |
| 20 MM | 3/4" BSP | 60 | 140 | 58 | 0.42 |
| 25 MM | 1" BSP | 70 | 160 | 67 | 0.54 |
| 32 MM | 1-1/4" BSP | 80 | 190 | 73 | 0.95 |
| 40 MM | 1-1/2" BSP | 90 | 190 | 85 | 1 |
| 50 MM | 2" BSP | 100 | 230 | 110 | 1.50 |
