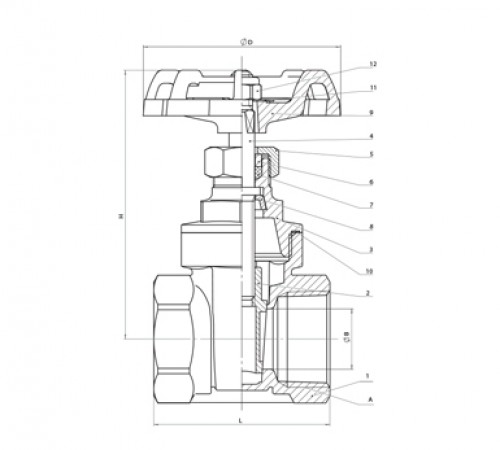

| Part No | Part Name | Material |
|---|---|---|
| 1 | BODY | CZ132 |
| 2 | Disc Gate | CZ132 |
| 3 | Bonnet | CZ132 |
| 4 | Stem | H62 |
| 5 | Nut | HPb60-3 |
| 6 | Packing Washer | HPb60-3 |
| 7 | Packing | PTFE |
| 8 | Clamping Ring | HPb59-1 |
| 9 | Hand Wheel | HT150 |
| 10 | Seat Washer | PTFE |
| 11 | Sign | 0.4mm Aluminium |
| 12 | Nut M6 | Stainless Steel |
PRESSURE / TEMPERATURE RATING
| Pressure Rating | 20 bar |
| Temperature | -10 to 120 °C |
TEST PRESSURES
| Shell | 30 bar |
| Seat | 22 bar |
SPECIFICATION
- Solid wedge disc, Non-rising stem,screw-in bonnet.
- Single piece wedge.
- Hand wheel operated.
- End connection Threaded to BS EN 10226-2 (ISO 7-1).
- Double O-ring seal - zero leakage guranted
- Design : BS EN 12288: 2010 PN20.
- Testing standard: BS EN 12266-2
DIMENSIONS & WEIGHTS
| Size | R/G Inch | B mm | D mm | H mm | L mm |
| 15 MM | 1/2 | 12.8 | 55 | 70 | 45 |
| 20 MM | 3/4 | 17 | 55 | 74.5 | 49.5 |
| 25 MM | 1 | 21 | 60 | 85 | 55 |
| 32 MM | 1 1/4 | 27 | 72 | 100 | 59.5 |
| 40 MM | 1 1/2 | 34 | 72 | 113 | 63 |
| 50 MM | 2 | 45 | 80 | 131 | 69 |
| 65 MM | 21/2 | 56 | 100 | 160 | 88 |
