BRONZE GATE VALVE (GVBR20)
Product Image
Product Image
Product Thumnail Product Thumnail

BRONZE GATE VALVE (GVBR20)

  • Non-rising stem is useful when shut-off is required and a space saving is necessary.
  • Solid wedge, integral seats and bi-directonal.
  • The female threaded ends allow for ease of installation.
  • Screw-in bonnet for service where infrequent maintenance is required.
  • Gate valves are best for services that require in frequent.
Category :

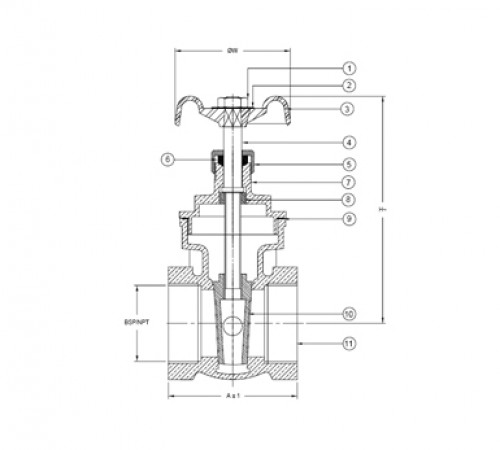

Part No Part Name Material
1 BODY BRONZE: BS EN 1984 CC 491K
2 BONNET BRONZE: BS EN 1984 CC 491K
3 WEDGE BRONZE: BS EN 1984 CC 491K
4 STEM DZR BRASS BS EN 12164 CW 602N
5 GLAND NUT DZR BRASS BS EN 12164 CW 602N
6 GLAND PACKING TEFLON (PTFE)
7 NAME PLATE ALUMINIUM
8 CHECK NUT BRONZE: BS EN 1984 CC 491K
9 PACKING TEFLON (PTFE)
10 HAND WHEEL ALUMINIUM
11 NUT MILD STEEL

PRESSURE / TEMPERATURE RATING

Pressure Rating 20 bar
Temperature -10 to 120 °C

TEST PRESSURES

Shell 30 bar
Seat 22 bar

SPECIFICATION

  • Solid wedge disc,Non-rising stem,screw-in bonnet..
  • Single piece wedge.
  • Hand wheel operated.
  • End connection Threaded to BS EN 10226-2 (ISO 7-1).
  • Double O-ring seal - zero leakage guaranteed.
  • Design : BS EN 12288: 2010 PN20.
  • Testing standard: BS EN 12266-2.

DIMENSIONS & WEIGHTS

Size A H~ ØW Weight (kg)
15 MM 46 82 54 0.27
20 MM 50 85 63 0.37
25 MM 55 101 63 0.49
32 MM 61 115 70 0.89
40 MM 63 126 80 0.94
50 MM 71 145 90 1.38
