| Part No | Part Name | Material |
|---|---|---|

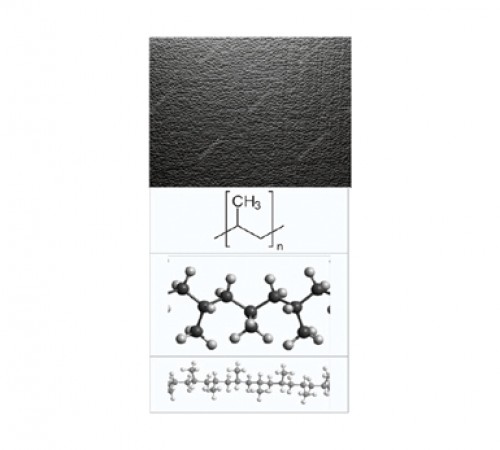

| 1 | EPP INSULATION | EXPANDED POLYPROPYLENE |
PRESSURE / TEMPERATURE RATING
| Temperature | 25 to 80 °C |
SPECIFICATION
- Density (Kg/m): 60
- Thermal conductivity W(m-k): 0.037
- Tensile Strength(Kpa):620
- Tensile Elongation % :14
- Compressive strength @ 50 % Strain (kpa) : 490
DIMENSIONS & WEIGHTS
| Size | L | W | ~H | Weight (kg) |
| 20x15 MM | 210 | 178 | 140 | 0.25 |
| 20 MM | 210 | 178 | 140 | 0.25 |
| 25 MM | 210 | 178 | 140 | 0.45 |
