FAN COIL UNIT KIT ( FCU20B/FCU20/FCU25)

The unit allows regulating ,flushing & isolating operations.
Fully ready mounted product,fast installation connection.
Flexible connections,the whole assembly can be adjusted in site for maximum convenience & easy accessibility with the space available
Minimum Commissioning only to pre-set flow rate for control valve(PIBCV)after installation of the systems.
Possible to set all positions,excellent for insulation,possibilities for flushing through PIBCVs due to hollow cone design.
Factory pressure tested at 30 bar certified by 3rd party. Optimizing the variable Flow Systems to give maximum Comfort & minimum energy consumption.
Minimum design, easy selection & very compact design for easy installations. Strainer With drain valve for easy draining eliminates opening of strainer plug.
BSRIA teated for PIBCV's on performances at part load conditions for all sizes.
Strainer are with 20MESH

Category :

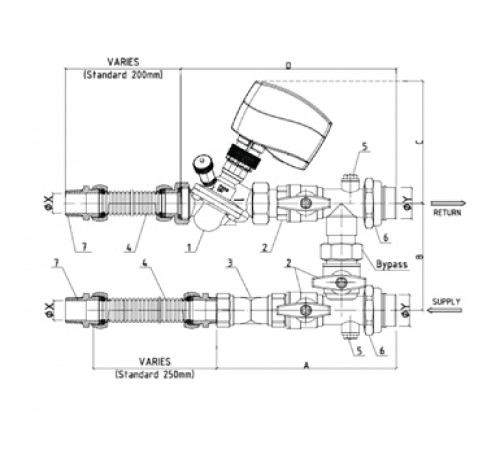

Part No	Part Name	Material
1	AB-QM VALVE(PIBCV)	DZR BRASS:BS CZ 132
2	90-450	DZR BRASS:BS CZ 132
3	STRAINER WITH DRAIN COCK;
4	BODY	DZR BRASS:BS CZ 132
5	SCREEN (PERFORATION0.75MM)	STAINLESS STEEL:BS1.4301
6	FLEXBLE CONNECTION(CORRUGATED)	STAINLESS STEEL:BS1.4301
7	BLIND CAP	DZR BRASS:BS CZ 132
8	PIPE CONNECTOR:
9	UNION	DZR BRASS:BS CZ 132
10	O-RING	EPDM
11	HEXNUT	HEXNUT
12	FCU CONNECTOR
13	MALE ADAPTOR	STAINLESS STEEL : BS 1.4301
14	SEALING GASKET	SLICON RUBBER
15	O-RING	EPDM
16	SWIVEL NUT	STAINLESS STEEL : BS 1.4301

Pressure Rating	20 bar
Temperature	-10 to 120 °C

Shell	30 bar
Seat	22 bar

Application :Fan coil unit, close control unit.
Working Medium:Water and water mixture for closed cooling systems.
PIBCV Differential pressure Range:16-600kPa.
PIBCV Control Characteristics: Linear/Equal Percentage.
Different flexible length(300MM,400MM,450MM and 500MM are available upon request.
Braided flexible upon request.
DP Controller: EPDM Diaphragm.
End connection:Threaded
