Products
  • 8 Product Found of 25
Product Images

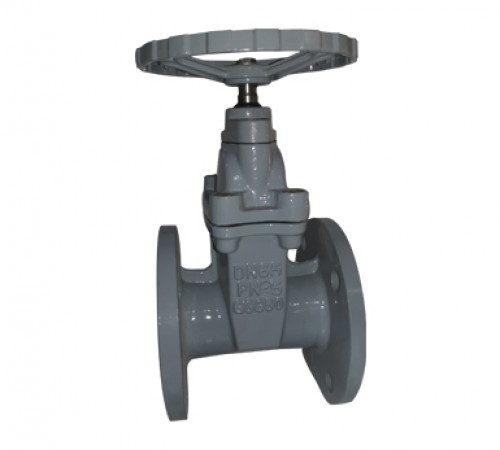

DUCTILE IRON GATE VALVE (GX16 / GX16D)

  • The valves are delivered with handwheel or round cap.
  • Full and straight bore in order to avoid turbulence ,loss of head and VENTURI effect.
  • Can be mounted in non-vertical positions.
  • Non-rising stem is useful when shutoff is required and a space saving is necessary
  • solid wedge and bi-directional

Product Images
DUCTILE IRON GATE VALVE (GX25 / GX25D)

  • The valves are delivered with handwheel or round cap.
  • Full and straight bore in order to avoid turbulence ,loss of head and VENTURI effect.
  • Can be mounted in non-vertical positions.
  • Non-rising stem is useful when shutoff is required and a space saving is necessary.
  • solid wedge and bi-directional.

VALVE SELECTION

SPECIFICATION PART NUMBER
SOFT SEAT GX25
METAL SEAT GX25D

Product Images

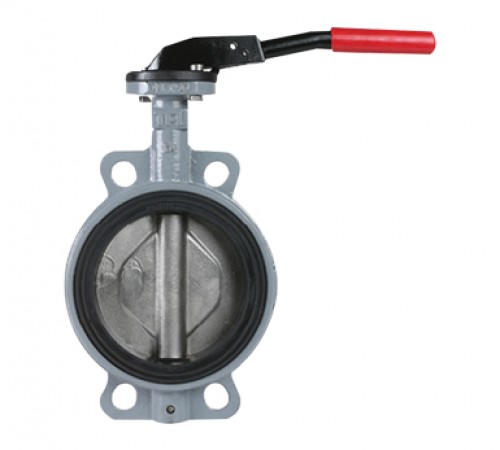

DUCTILE IRON BUTTERFLY VALVE WAFER (BFX16-W / BFX16S-W)

  • Long neck for insulation, Maintenance free.
  • 200 Micron Fusion Bonded Epoxy Powder  coated for improved barrier to corrosive chemicals,moisture and  humid air.
  • Valves DN200 and larger sizes supplied as standard with fully enclosed gear operator.
  • Unique triple sealing  system for shaft sealing,eliminates any fugitive emission or secondary leakage.
  • EPDM seat liner extending  on to the ?ange  contact face, eliminates the need for  separate ?ange gaskets  during installations.
  • Suitable for  ON / OFF and modulating duty (Torque details available on request).
  • EPDM Fusion bonded lined valves available.

Product Images

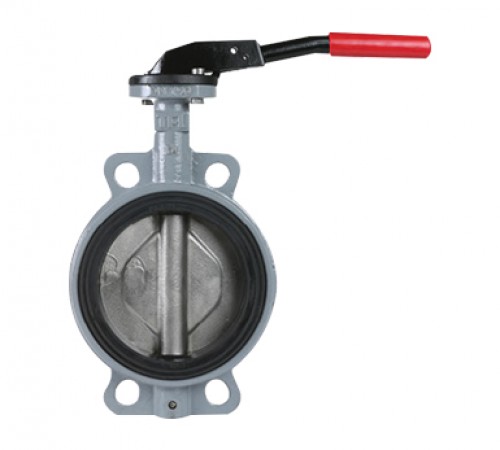

DUCTILE IRON BUTTERFLY VALVE WAFER (BFX25-W / BFX25S-W)

  • Long neck for insulation, Maintenance free.
  • 200 Micron Fusion Bonded Epoxy Powder  coated for improved barrier to corrosive chemicals,moisture and  humid air.
  • Valves DN200 and larger sizes supplied as standard with fully enclosed gear operator.
  • Unique triple sealing  system for shaft sealing,eliminates any fugitive emission or secondary leakage.
  • EPDM seat liner extending  on to the ?ange  contact face, eliminates the need for  separate ?ange gaskets  during installations.
  • Suitable for  ON / OFF and modulating duty (Torque details available on request).
  • EPDM Fusion bonded lined valves available.

Product Images

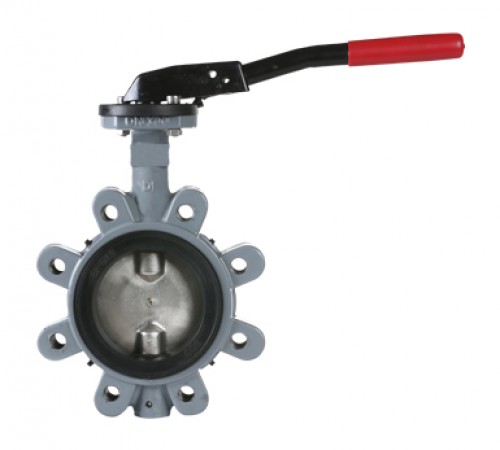

DUCTILE IRON BUTTERFLY VALVE LUGGED (BFX16-L / BFX16S-L)

  • Long neck for insulation, Maintenance free.
  • 200 Micron Fusion Bonded Epoxy Powder coated for improved barrier to corrosive chemicals, moisture and humid air.
  • Valves DN200 and larger sizes supplied as standard with fully enclosed gear operator.
  • Unique triple sealing system for shaft sealing. eleminates any fugitive emission or secondary leakage.
  • EPDM seat liner extending on to the flange gaskets during installations.
  • Suitable for ON/OFF and modulating duty (Torque details available on request.
  • EPDM Fusion bonded lined valves available upon request.

Product Images
DUCTILE IRON BUTTERFLY VALVE LUGGED (BFX25-L / BFX25S-L)

  • Long neck for insulation, Maintenance free.
  • 200 Micron Fusion Bonded Epoxy Powder coated for improved barrier to corrosive chemicals, moisture and humid air.
  • Valves DN200 and larger sizes supplied as standard with fully enclosed gear operator.
  • Unique triple sealing system for shaft sealing. eleminates any fugitive emission or secondary leakage.
  • EPDM seat liner extending on to the ?ange gaskets during installations.
  • Suitable for ON/OFF and modulating duty (Torque details available on request.)
  • EPDM Fusion bonded lined valves available.

Product Images

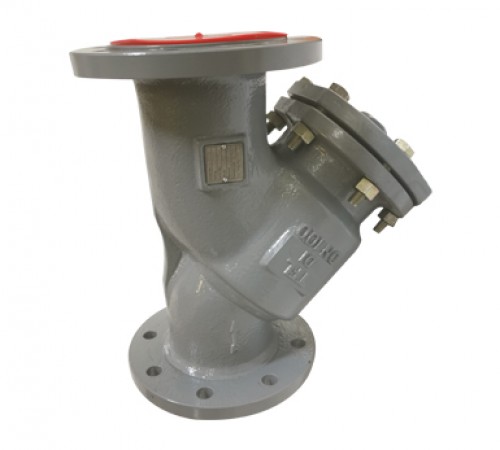

DUCTILE IRON Y-STRAINER (ST16)

  • Perforated stainless steel screen & Robust design.
  • Low ?ow resistance and offer 35% open area and above.
  • Steamlined ?ow contours minimize pressure drop.
  • Compact design with short face to face.
  • 200 Micron Fusion Bonded Epoxy Powder coated internal and external ensured barrier to corrosive chemicals, moisture and humid air.
  • Asbestos-free non-stick gasket.
  • Comprehensive ?ow characteristics.
  • These strainers must not be used in an end of line application without a blanking ?ange being ?tted on the downsteam end of the valve.

Product Images

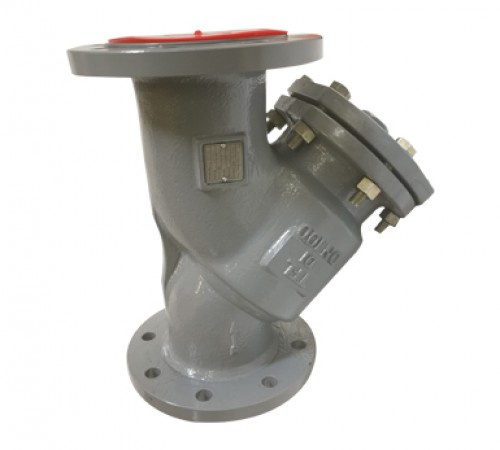

DUCTILE IRON Y-STRAINER (ST25)

  • Perforated stainless steel screen & Robust design.
  • Low flow resistance and offer 35% open area and above.
  • Streamlined flow contours minimize pressure drop.
  • Compact design with short face to face.
  • 200 Micron Fusion Bonded Epoxy Powder coated internal and external ensured barrier to corrosive chemicals, moisture and humid air.
  • Asbestos-free non-stick gasket.
  • Comprehensive flow characteristics.
  • These strainers must not be used in an end of line application without a blanking flange being fitted on the downstream end of the valve.
